Platonium 12

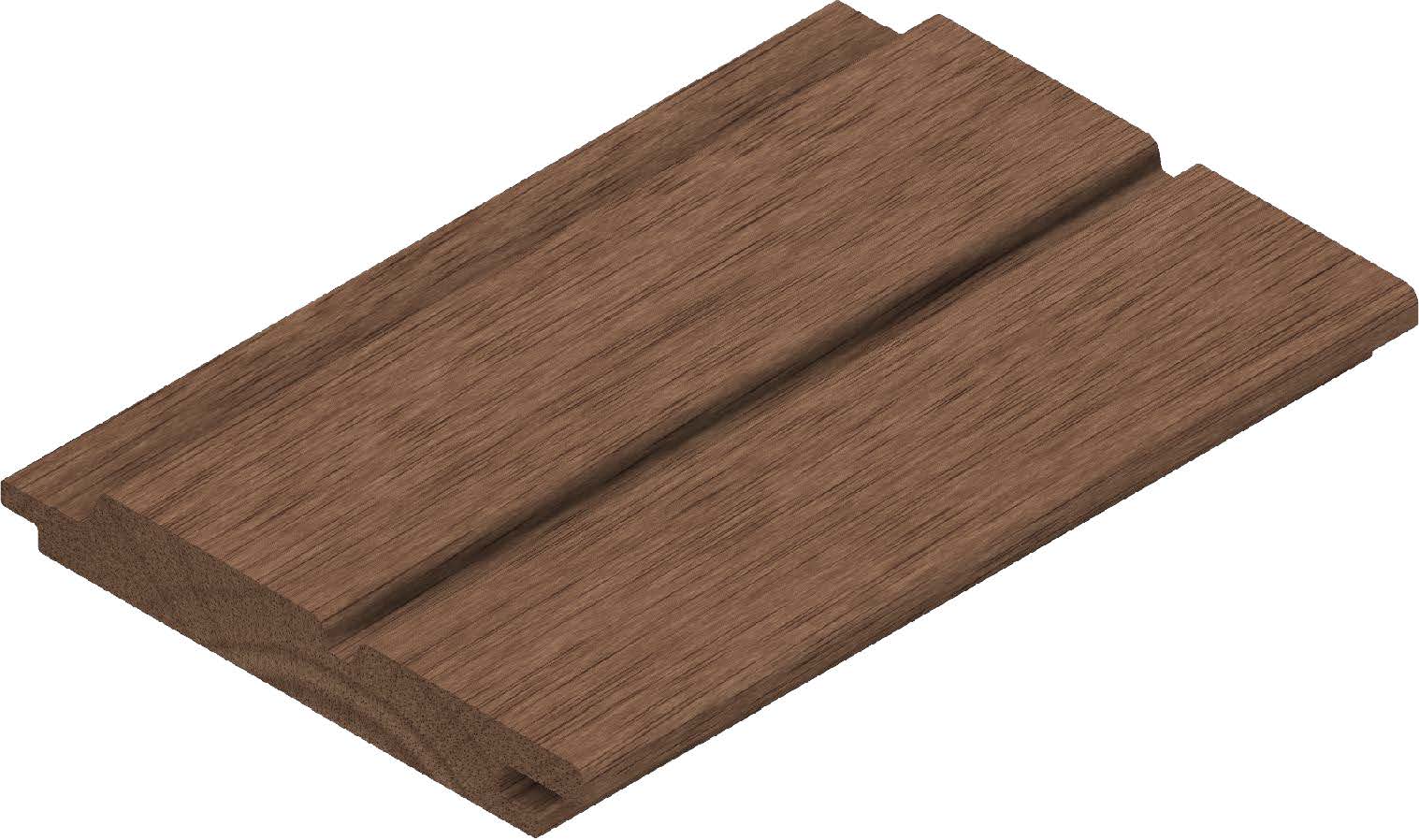

Platonium 12 is a profile that is specifically made for hidden fastening. The elongated tongue of the P12 gives space for a screw or nail, which will be covered by the groove of the next overlapping board. The result is wooden cladding without screw or nail holes.

Type Tongue and groove for hidden fastening with shiplap
Optional Fine sawn face
Application Horizontal + vertical
Lengths Fraké 185-545 cm1   -   Poplar 105-415 cm1   -   Spruce 360-540cm1
Measurements Thickness x width Face Cover:*
  20 x 90 mm 70+4 mm
  20 x 115 mm 95+4 mm
  20 x 140 mm 120+4 mm
  18 x 185 mm (fraké and spruce) 165+4 mm

* Face cover: covering product size plus the intermediate space to be used offers the total effective size.
