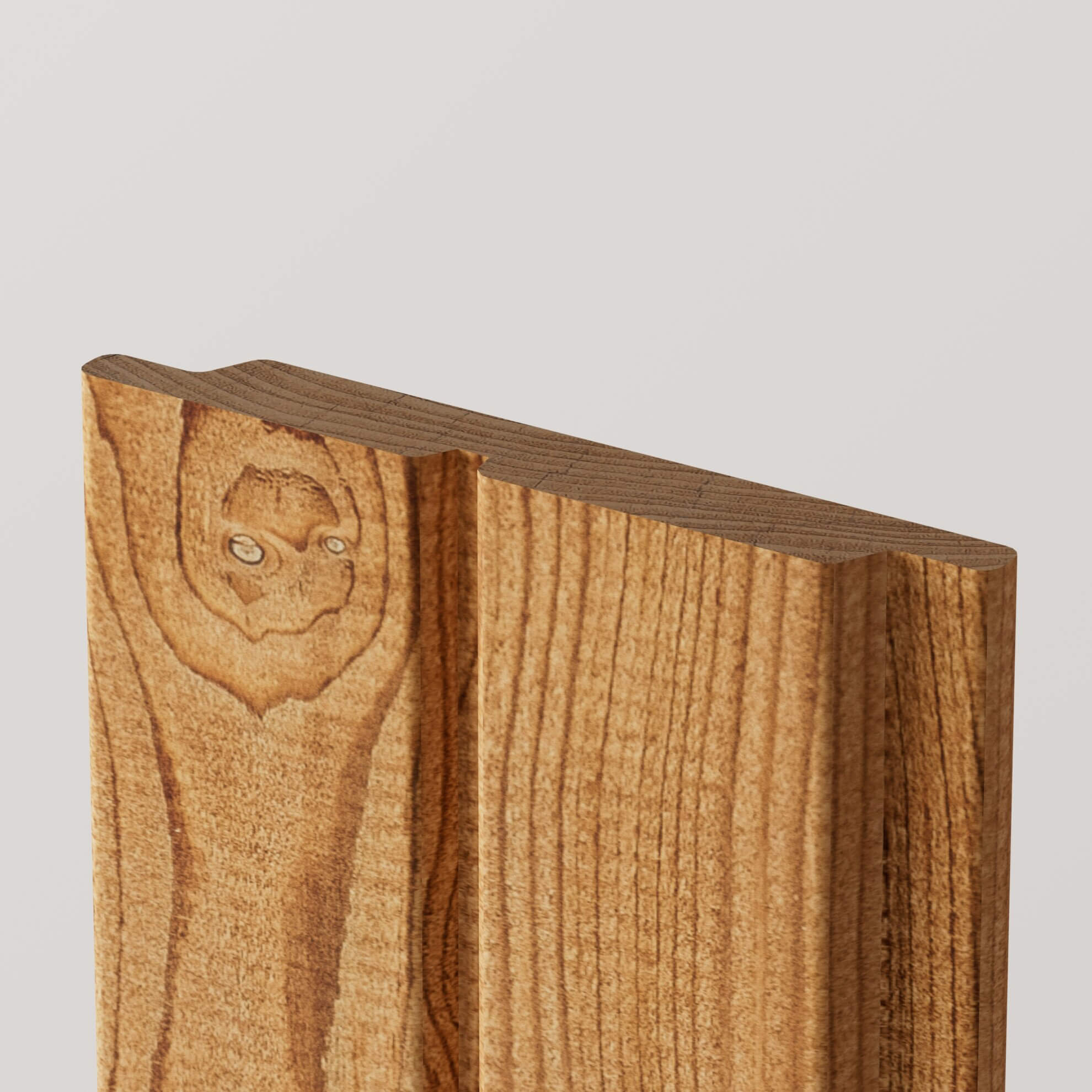

Platonium 02, also known as channel siding with a shadow gap, is a profile suitable for closed façade cladding.
| Profile | Channel siding with false rebate | |
| Optional | Fine-sawn facing side | |
| Application | Horizontal + vertical | |
| Lengths | Fraké 185-545 cm1 - Poplar 150-400 cm1 - Spruce 360-550 cm1 | |
| Sizes | Thickness x width: | Working size:* |
| 18 x 90 | 75+4 | |
| 18 x 115 mm | 101+4 | |
| 18 x 140 mm | 125+4 | |
| 18 x 185 mm (Fraké and Spruce) | 170+4 | |
*Working dimension: the covering product dimension plus the spacing to be applied gives the total effective dimension.
Custom dimensions available on request.
For all available lengths of our wood, we recommend checking our dimensions and profile overview.
The prices of our wood depend on the cross-section, profile, and finish. Platowood works exclusively with a dealer network, who set their own prices. For current retail prices, you can contact your nearest dealer.
Platowood Fraké and Poplar are both double-sided usable, but this is not the case with Platowood Spruce.
For spruce, the oldest growth rings—marked with a scoring roller—must be installed on the back side of the façade. Due to fluctuations in the weather, spruce can start to delaminate, meaning the growth rings separate from each other. By placing the youngest ring on the outside, any delamination remains invisible.
