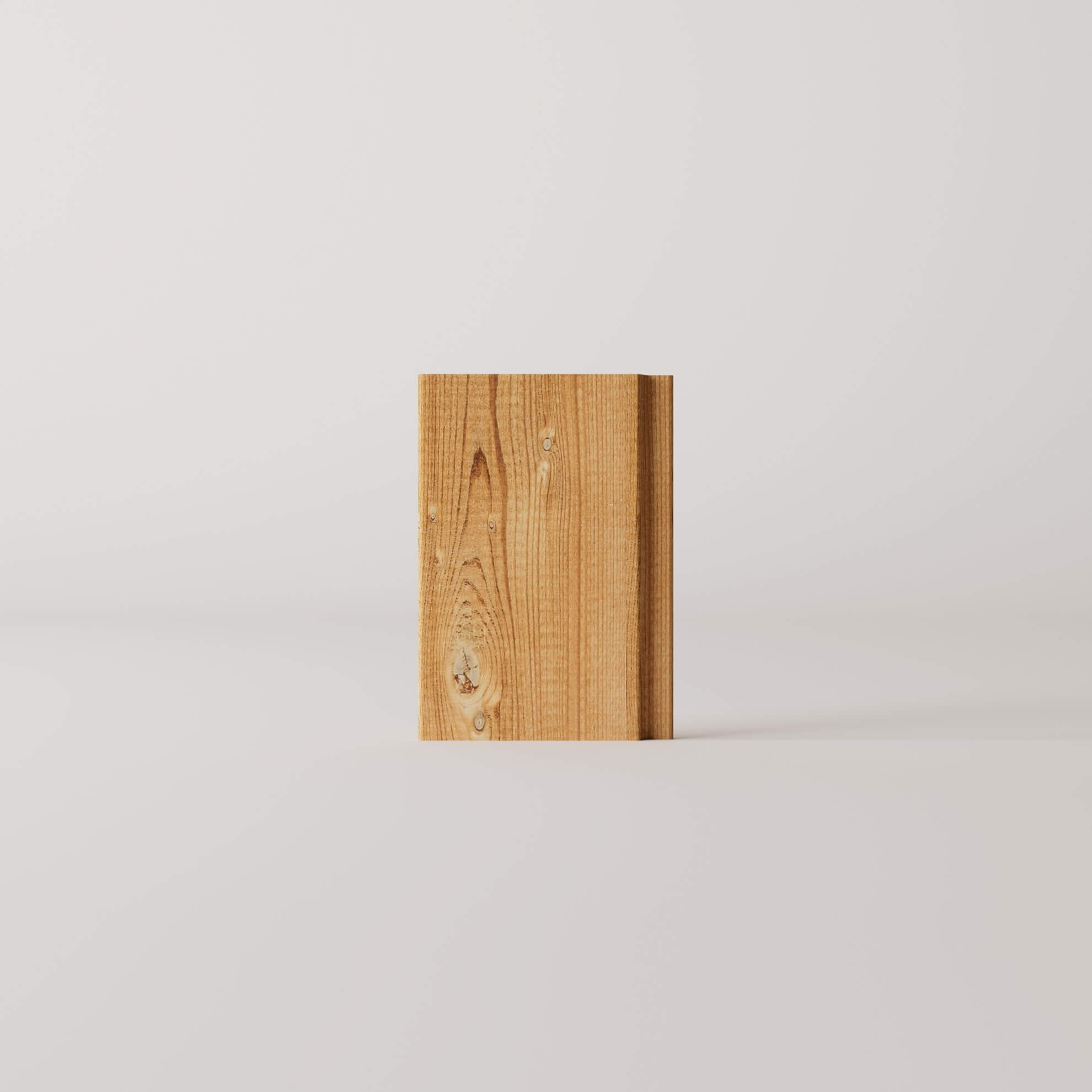

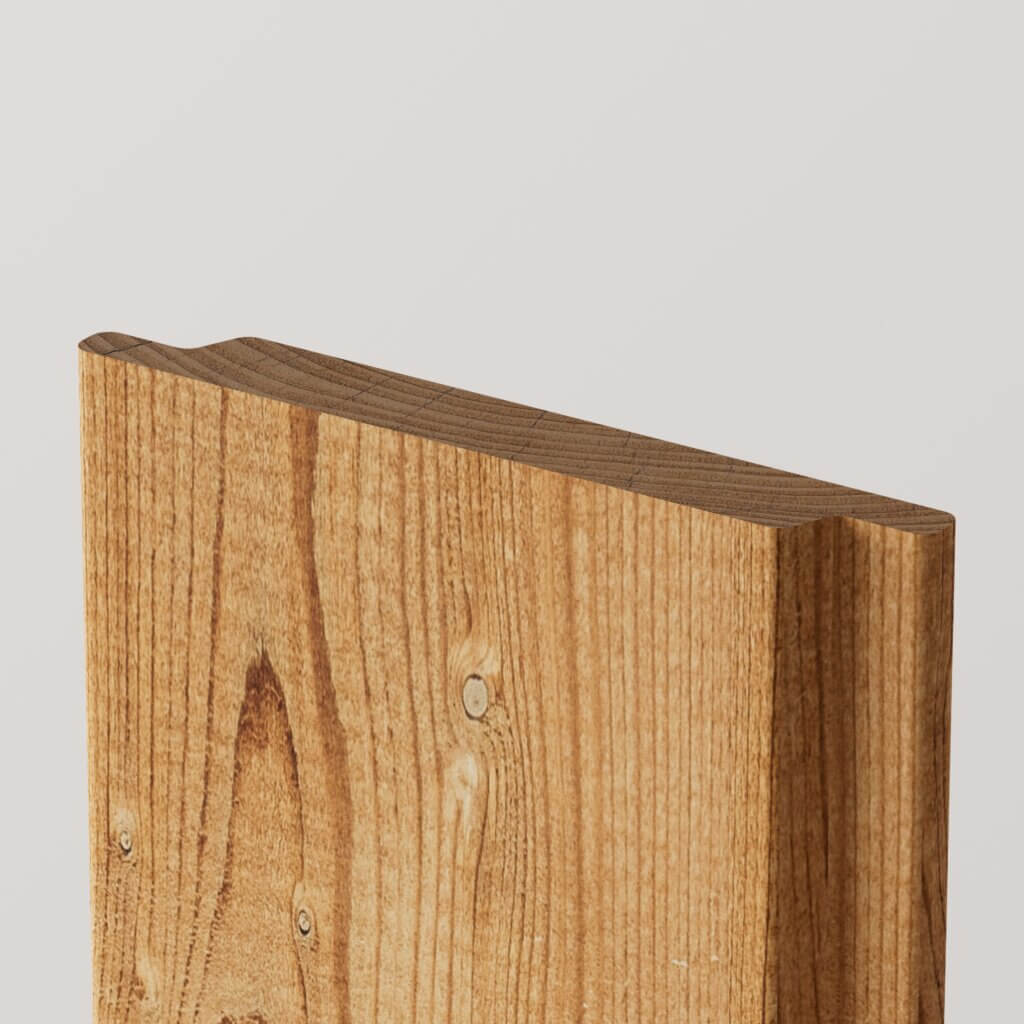

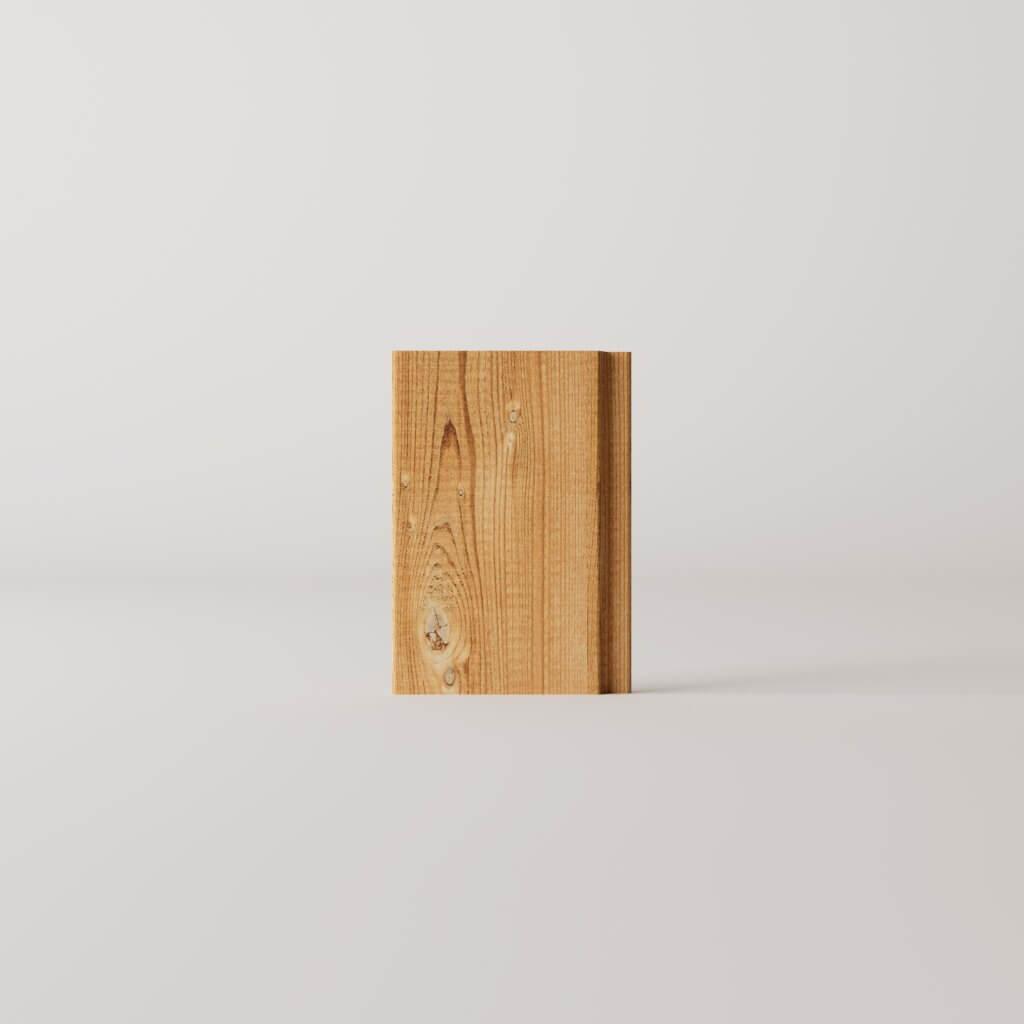

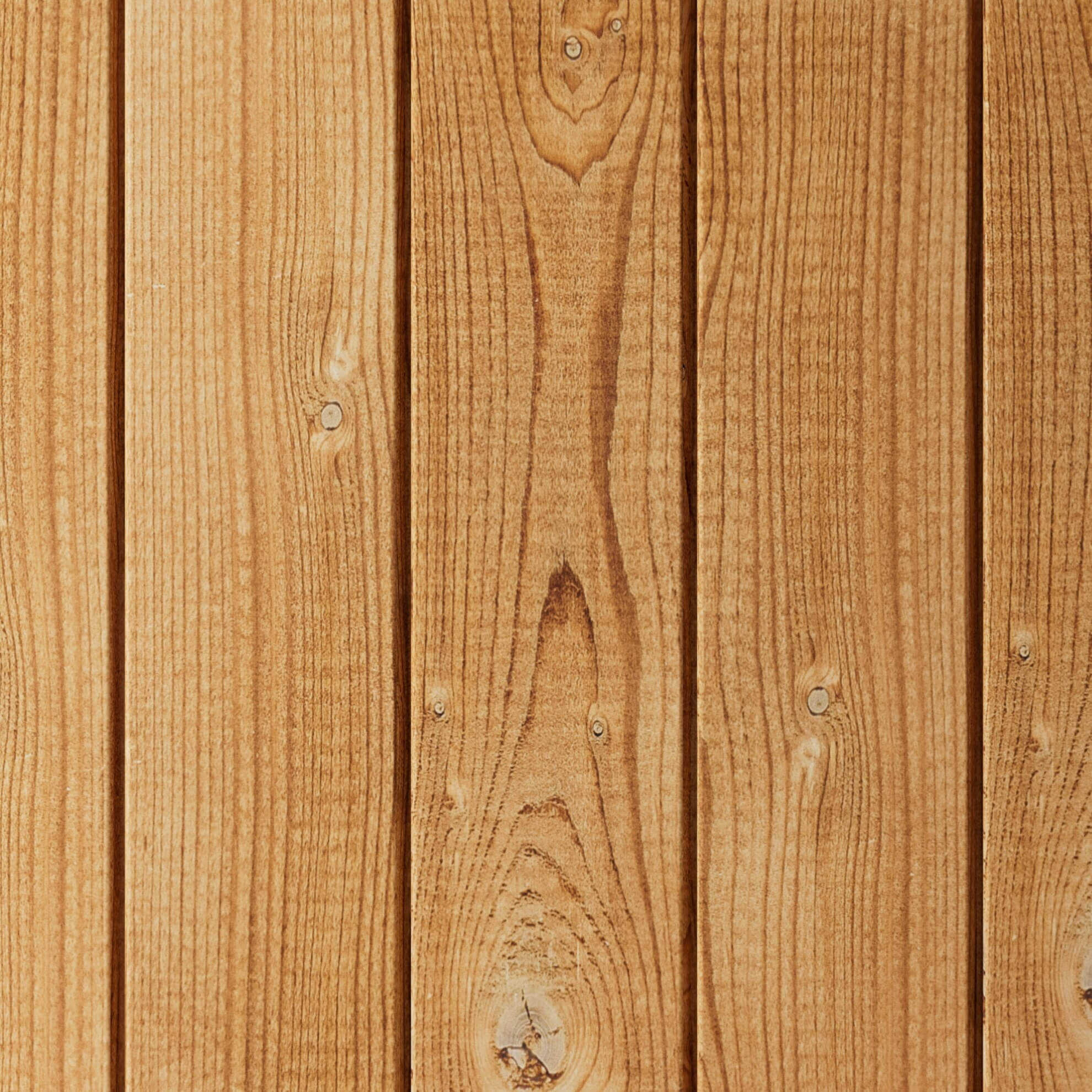

Platonium 01, also known as the channel siding profile, is suitable for closed façade cladding. Platonium 01 in Fraké and Poplar is double-sided, while Platonium 01 in Spruce (with the bark side as the visible side) is single-sided. The reverse side of Platowood Spruce Platonium 01 can be identified by a marking, either a perforation line or a groove.
| Profile | Channel siding | |
| Optional | Fine-sawn facing side | |
| Application | Horizontal + vertical | |
| Lengths | Fraké 185-545 cm1 - Poplar 150-400 cm1 - Spruce 360-550cm1 | |
| Sizes | Thickness x width: | Working size:* |
| 18 x 66 mm | 51+4 | |
| 18 x 90 mm | 75+4 | |
| 18 x 115 mm | 101+4 | |
| 18 x 140 mm | 125+4 | |
| 18 x 185 mm (Fraké and Spruce) | 170+4 | |
*Working dimension: the covering product dimension plus the spacing to be applied gives the total effective dimension.
Custom dimensions available on request.
For all available lengths of our wood, we recommend checking our dimensions and profile overview.
The prices of our wood depend on the cross-section, profile, and finish. Platowood works exclusively with a dealer network, who set their own prices. For current retail prices, you can contact your nearest dealer.
The fire safety of a wooden façade depends on the configuration. In general, fire spreads more quickly in an open façade than in a closed one. Without fire-retardant treatment, our wood has Euro fire class D.
Platowood Fraké and Poplar are both double-sided usable, but this is not the case with Platowood Spruce.
For spruce, the oldest growth rings—marked with a scoring roller—must be installed on the back side of the façade. Due to fluctuations in the weather, spruce can start to delaminate, meaning the growth rings separate from each other. By placing the youngest ring on the outside, any delamination remains invisible.
